2N® EasyGate IP - 4G Dual SIM Gateways

The Plug-&-Play 2N® EasyGate IP is primarily intended for voice transmission via VoIP or VoLTE (or GSM, UMTS) using a particular mobile network and a connected terminal device with the FXO interface (lift emergency phones).



Features

  • Fast & easy install

  • Industrial design

  • Access (4 x AA required)

  • Quick & easy installation

  • Autoconfiguration

  • Management via cloud

  • Status monitoring including batteries

  • Easy battery access (4 x AA required)

  • 3G / 4G (VoIP & VoLTE)

  • Dual SIM

  • 10hr battery backup & 2hr talk time

  • Suitable for all line powered phones

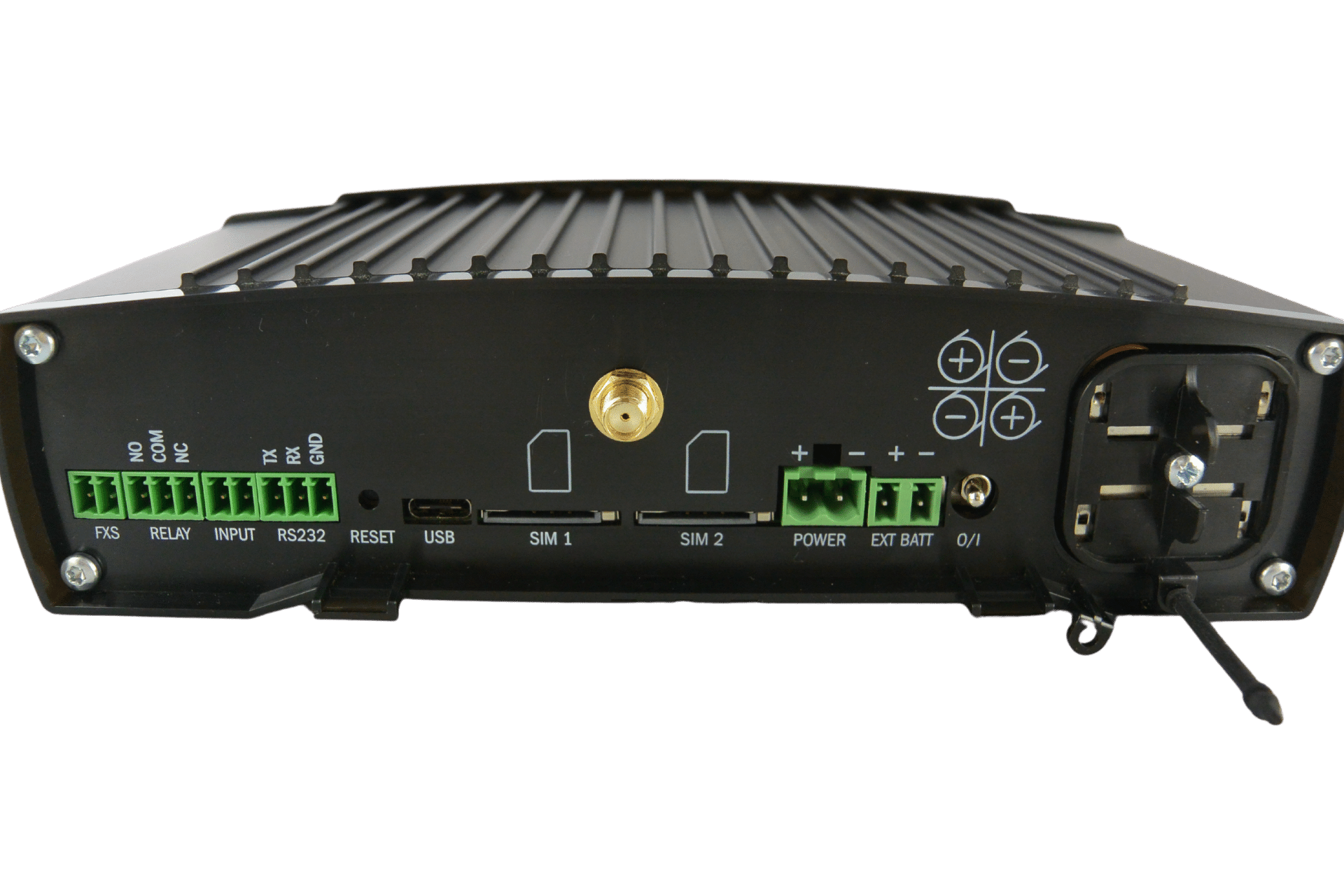

  • 1x RS232, 1x USB-c • SMS input & output relay

  • Water resistant IP43

  • -40°C to +85°C

  • 3 year warranty

  • RCM approved

Technical Specifications

UMTS model
‍Suitable for all Australian networks
‍
‍Antenna
‍Connector type: SMA
Impedance: 50 Ohms

Power supply

DC power supply 9 to 30 V DC

Consumption 12 V At rest 100 mA

Data type. 300 mA, max 1000 mA

Internal battery 4x NiMH type AA, 1.2 V / 2000 mAh

External battery Identical to internal - 4x NiMH type AA, 1.2 V

Telephone interface

Interface type 2-wire analog. FXS (for telephone or external PBX line)

Speech impedance Adjustable regionally, preset 600 W

Loop voltage suspended 48 V DC

Loop current Max. 20 mA

Tone frequency Adjustable, preset to 425 Hz

Choice Tone (DTMF) and pulse

Ringing voltage 42 Vef 10–60 Hz

Caller ID CLIP during ringing according to ETSI FSK

Tariffing impulses f=16/12 kHz

Call progress signaling 12/16 kHz pulse

Serial interface

Interface type RS-232

Other

Dimensions

Without connectors: 191.59 (W) x 113.94 (H) x 50.95 (D) mm

With connectors: 191.59 (W) x 118.5 (H) x 50.95 (D) mm

Weight 590g HW

Operating temperature -40 ° C to + 85 ° C

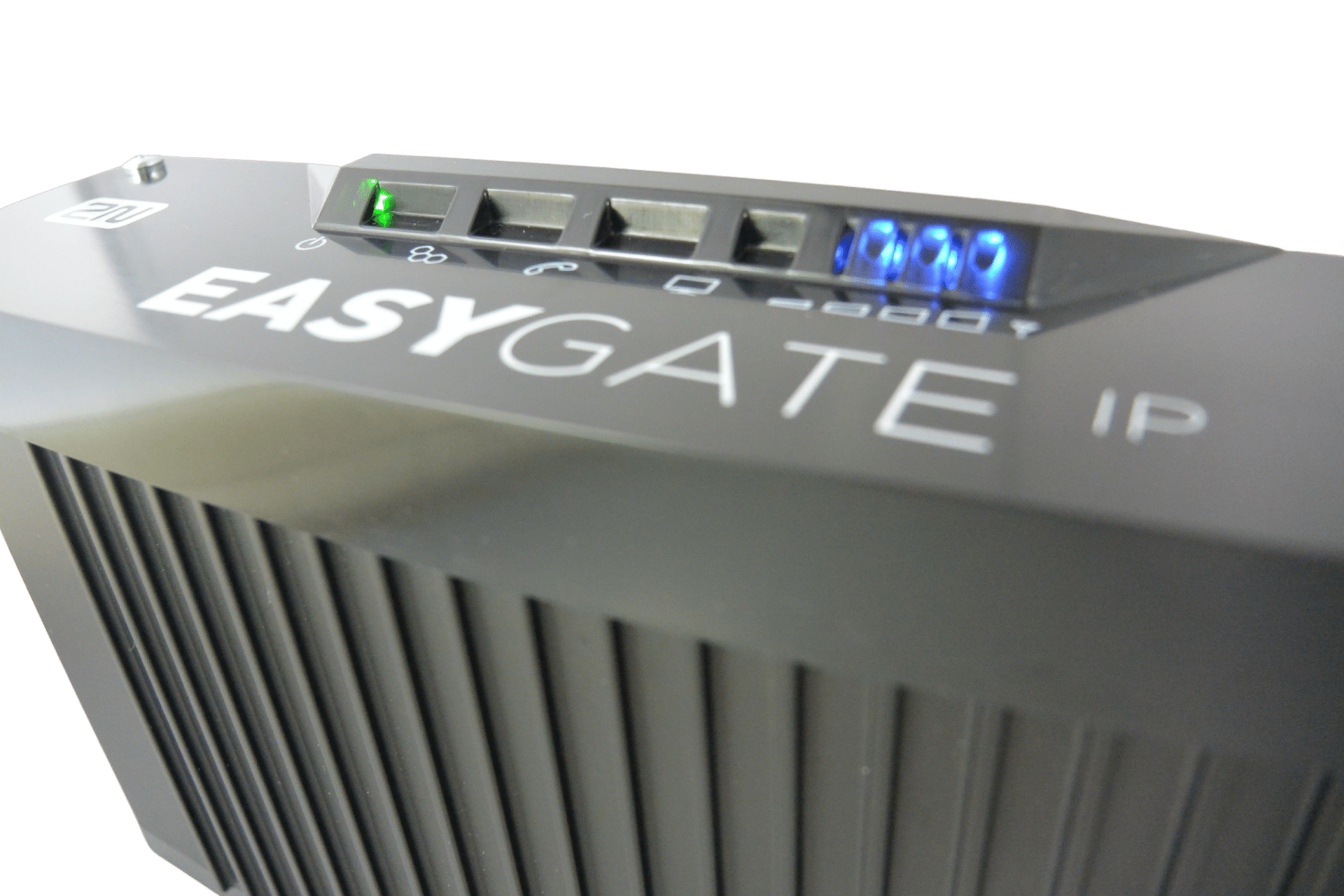

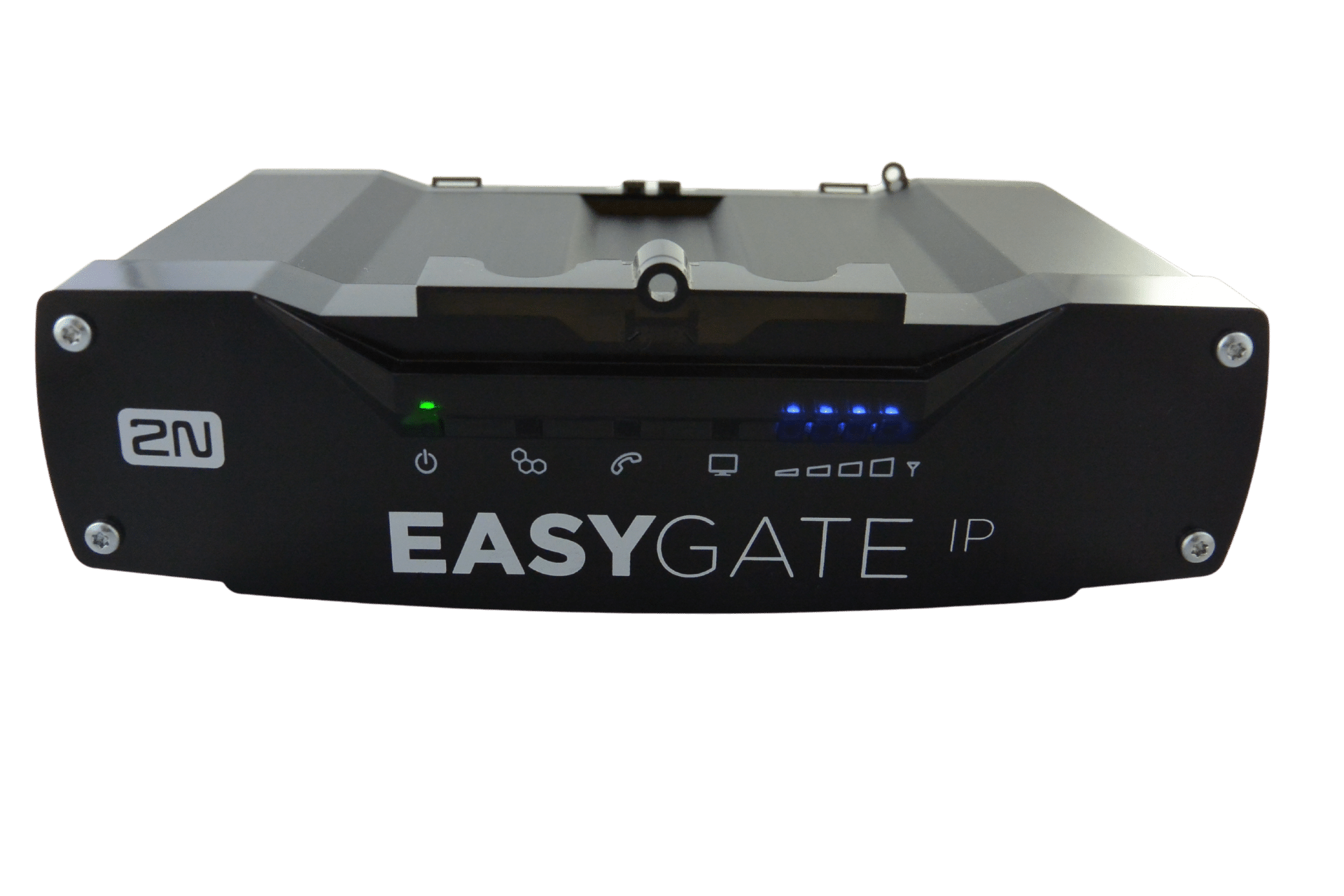

Signalling of operating states 8x LED (POWER, CELLULAR, LINE, DATA, Signal strength)

Humidity 10% - 95% (non-condensing)
